Melt3D

Melta Mk1

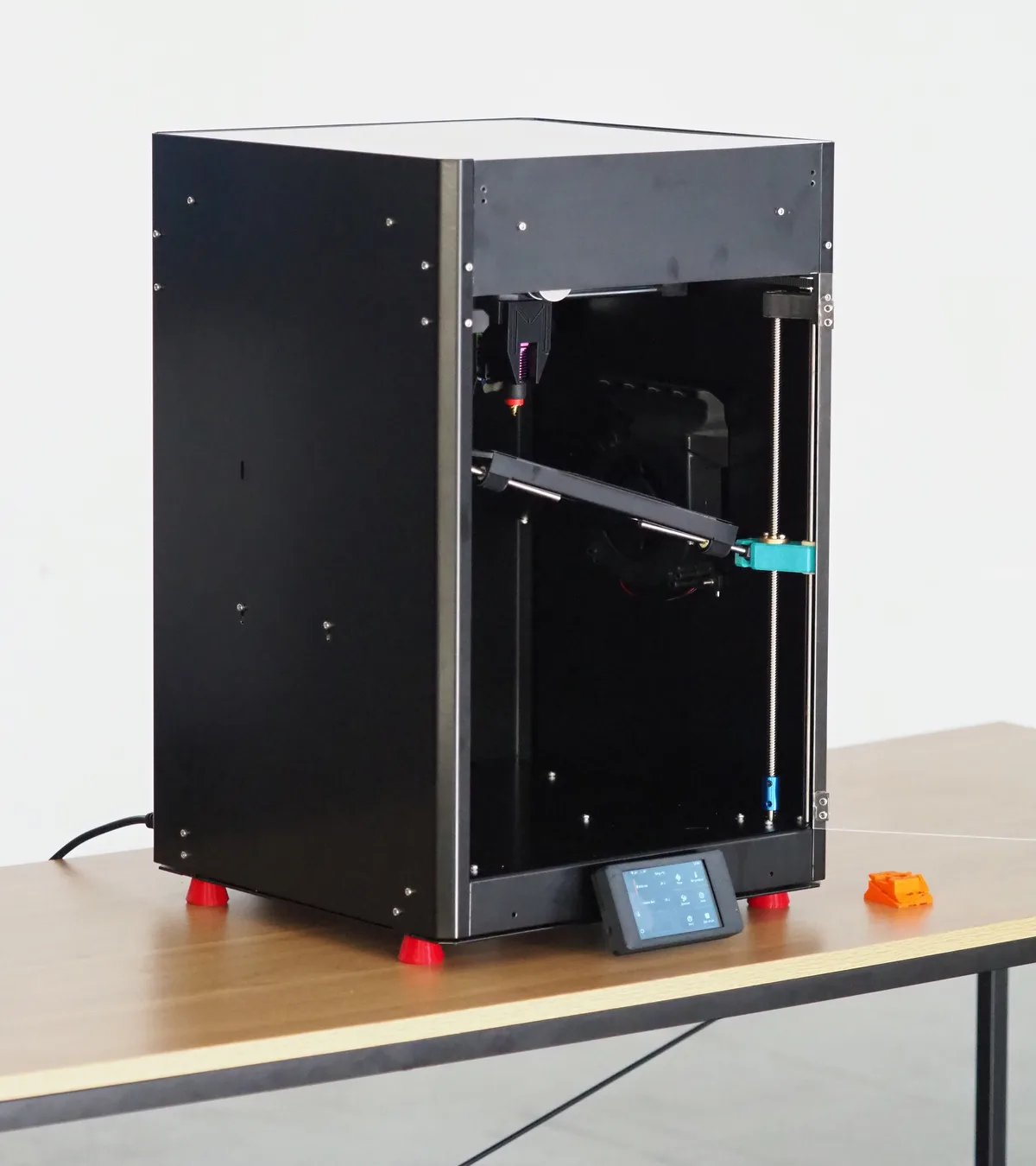

Melta Mk1 is the first non-planar printer of its kind.

It combines a trinamic print bed and an original nozzle. This combination allows us to print over-hangs higher than 90°.
Our technology helps us to increase the top surface quality and strength of the final product by up to 62%.

What is Non-Planar
Printing?

To answer this question we need to know what the plan printing is. Planar technology prints in flat layers. Each new layer of filament is layered upon previously placed layer-like support material. This limits the number of shapes these machines can print and the overall quality of their final products.

Currently, the market is flooded with planar printers.
When a model is printed non-plenary the layer can be printed under an angle without the previously printed layer present underneath. Most non-planar printers use robotic hands to achieve this.

How it works ?

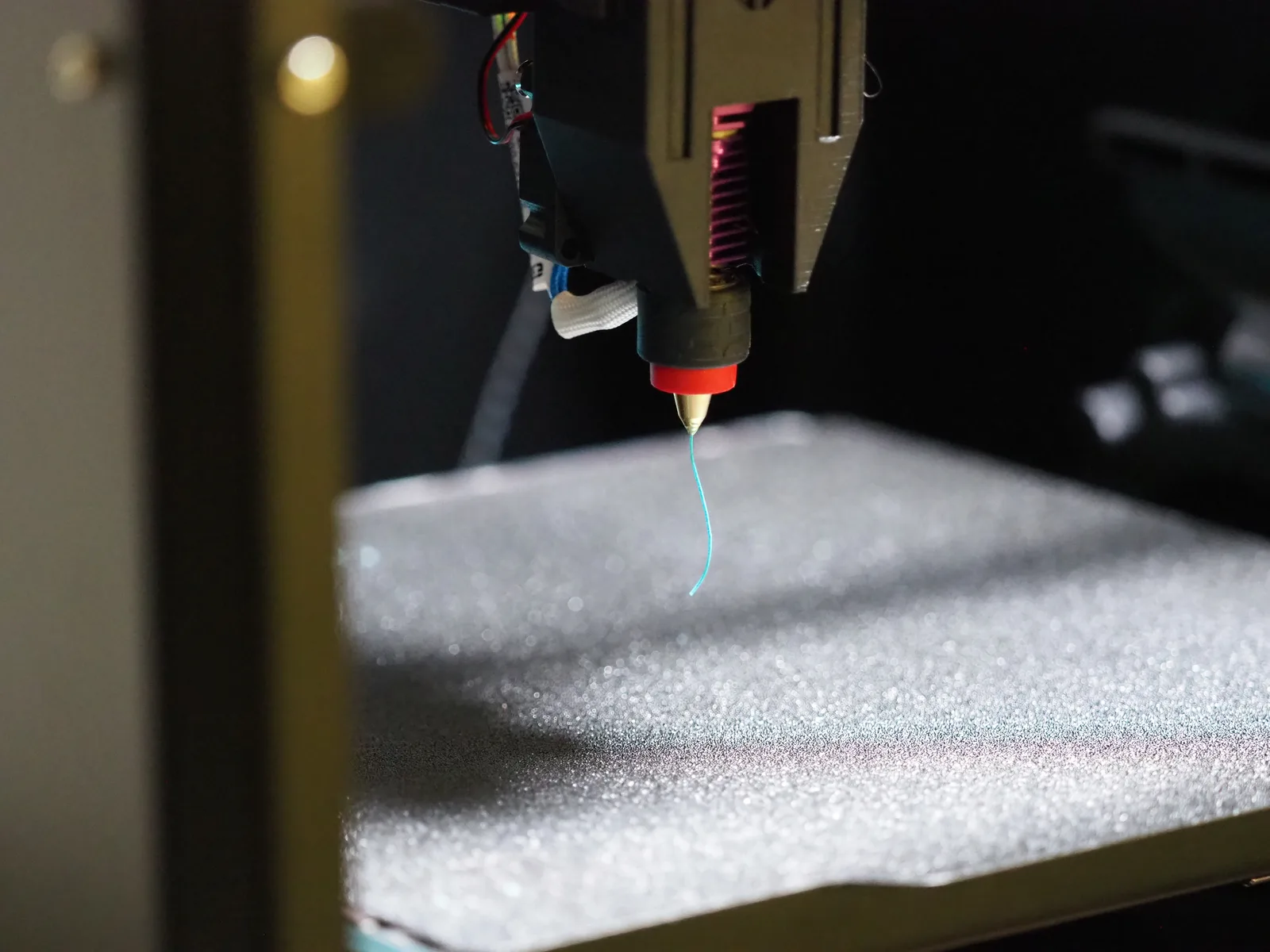

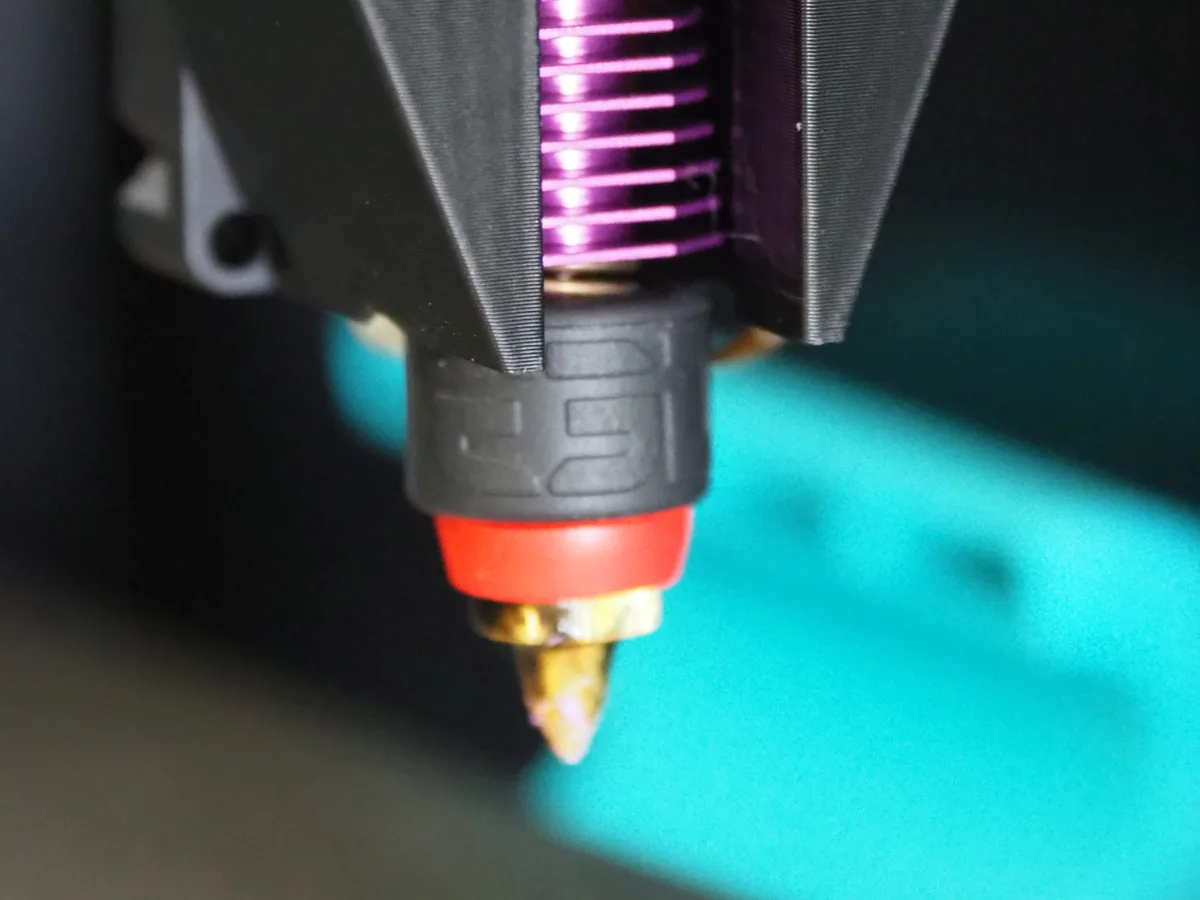

We achieve non-planar printing by using an extended nozzle combined with a fully tiltable printbed.

High-placed cooling ducts take care of cooling without obstructing the non-planar print.

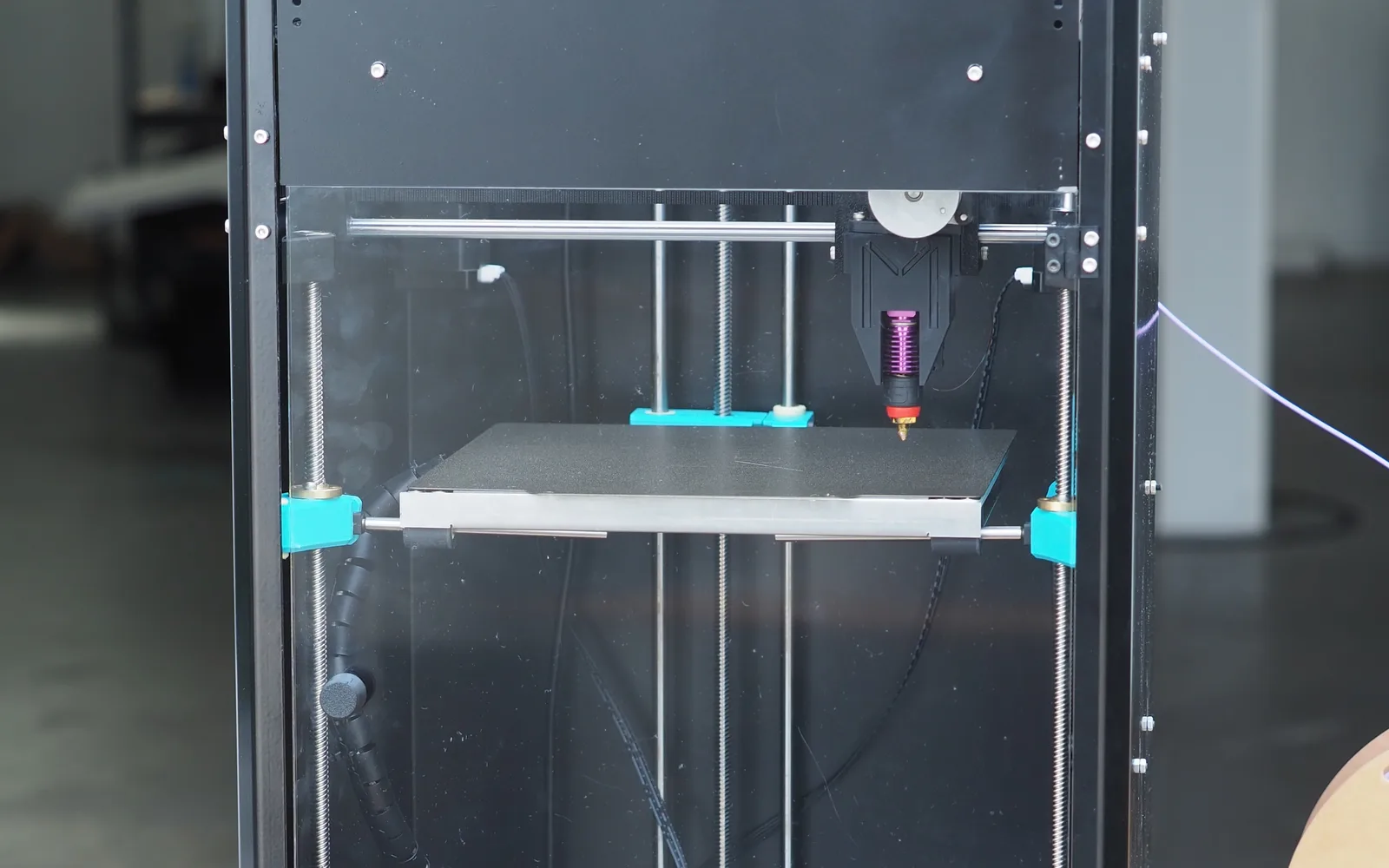

The print bed is tilted using 3 independent lead screws placed in a triangular shape. The bed uses a BL touch for bed leveling. In order for probe not to obstruct non-planar print, we use auto docking to grab the probe when it’s time for bed leveling.

For easy print removal, the printer features a flexible powder-coded PEI sheet. Active pressure advance is present too to prevent ringing at higher speeds

Our Mision


We strive to create a company that will spread non-planar printing and lead the future on 3D printing innovations in European and World markets.
